Seasonic
Seasonic Core Series GM-650 650W Semi-modular ATX 80+ Gold Certified Power Supply
Seasonic Core Series GM-650 650W Semi-modular ATX 80+ Gold Certified Power Supply
Out of stock
بضمان الوكيل المحلي لمدة سنة
Couldn't load pickup availability
CORE SERIES
The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS® Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.
The availability of the CORE Series depends on your geographic locations. Please contact your local Seasonic representative for more information.
- ATX 12 V
- Semi-modular
- 80 PLUS Gold Certified
- 7 Years Warranty
- Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
OVERVIEW
80 PLUS® GOLD
The CORE GM Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

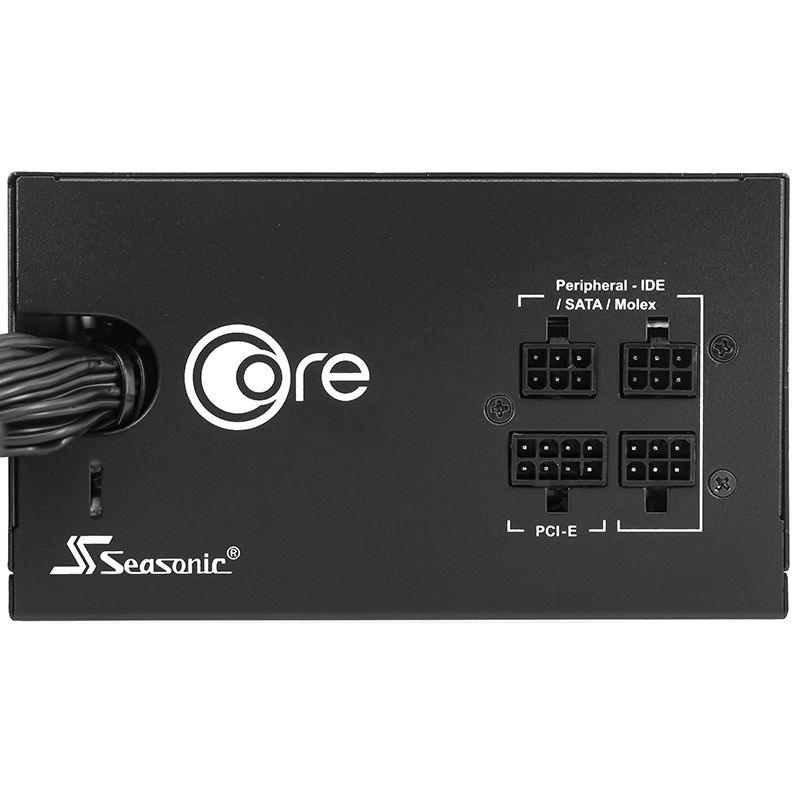

SEMI-MODULAR CABLES
Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.
S2FC - SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
FEATURE SUMMARY
- 80 PLUS® Gold certified
- Semi-modular
- Tight Voltage Regulation
- S2FC - Smart and Silent Fan Control
- DC to DC Converter Design
- 105 °C Japanese Capacitor
- 7 years warranty
GALLERY
SPECIFICATIONS
CORE-GM-650
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control | |
| Fan Bearing | Sleeve Bearing | |
| Life Expectancy | 25,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Semi-modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, OCP, OTP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 7 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 9 - 4.5 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 54 A | 0.3 A | 3 A | |
| 100 W | 648 W | 3.6 W | 15 W | |||
| Total continuous power | 650 W | |||||
CABLES
CORE-GM-650
| Cable type | Connector(s) per cable | Total length (mm) | Number(s) of cable(s) included |
|---|---|---|---|
| MB (24/20 pins) | 1 | 610 | 1 |
| CPU (8/4 pins) | 1 | 650 | 1 |
| PCIe (8/6 pins) | 2 | 750 | 2 |
| PCIe (8/6 pins) | 1 | 750 | 0 |
| SATA | 4 | 810 | 1 |
| SATA | 4 | 860 | 0 |
| SATA | 4 | 760 | 0 |
| SATA | 2 | 700 | 0 |
| SATA | 2 | 570 | 0 |
| SATA | 2 | 470 | 0 |
| SATA | 2 | 450 | 1 |
| Molex | 3 | 690 | 1 |
| Molex | 2 | 470 | 0 |
| Molex to SATA 3.3 Adapter | 2 | 300 | 0 |
| Molex to FDD Adapter | 1 | 101 | 0 |
