Seasonic Core Series GM-650 650W Semi-modular ATX 80+ Gold Certified Power Supply - ALARABIYA COMPUTER
Seasonic Core Series GM-650 650W Semi-modular ATX 80+ Gold Certified Power Supply - ALARABIYA COMPUTER

Seasonic Core Series GM-650 650W Semi-modular ATX 80+ Gold Certified Power Supply

ج.م3,500.00
ج.م3,500.00
Subtotal: ج.م3,500.00
10 customers are viewing this product

Fast Shipping

Fast and safe shipping

Estimated to be delivered on 2-3 days.

Seasonic Core Series GM-650 650W Semi-modular ATX 80+ Gold Certified Power Supply - ALARABIYA COMPUTER

Seasonic Core Series GM-650 650W Semi-modular ATX 80+ Gold Certified Power Supply

ج.م3,500.00

Seasonic Core Series GM-650 650W Semi-modular ATX 80+ Gold Certified Power Supply

ج.م3,500.00
  • CORE SERIES

    The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS® Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.

    The availability of the CORE Series depends on your geographic locations. Please contact your local Seasonic representative for more information.

    • ATX 12 V
    • Semi-modular
    • 80 PLUS Gold Certified
    • 7 Years Warranty
    • Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)

     WATTAGE CALCULATOR COMPARE PRODUCTS

    OVERVIEW

    80 PLUS® GOLD

    The CORE GM Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

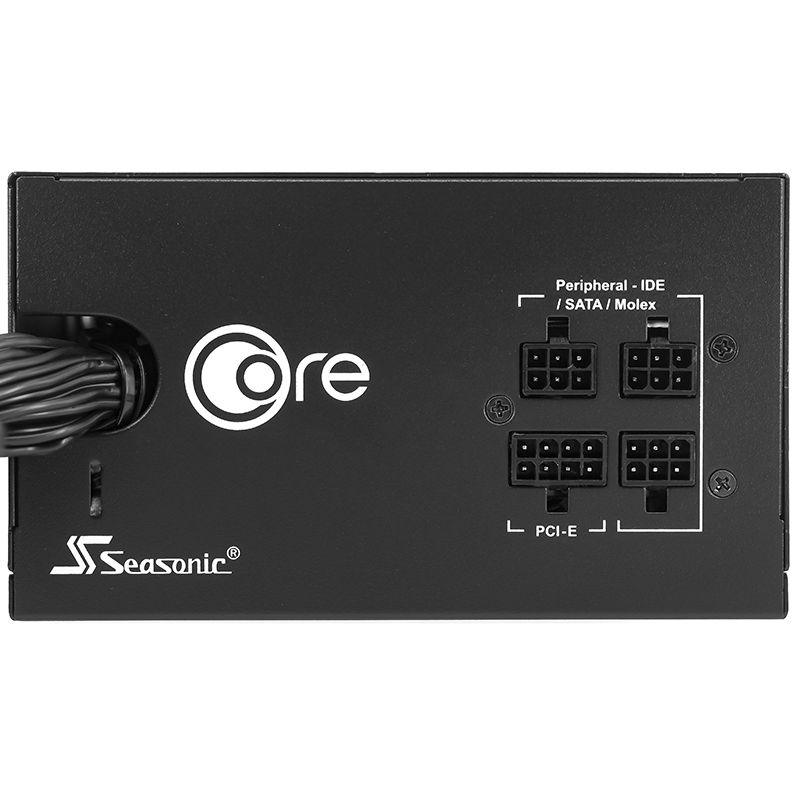

    SEMI-MODULAR CABLES

    Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.


    S2FC - SMART AND SILENT FAN CONTROL

    The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.



    FEATURE SUMMARY

    • 80 PLUS® Gold certified
    • Semi-modular
    • Tight Voltage Regulation
    • S2FC - Smart and Silent Fan Control
    • DC to DC Converter Design
    • 105 °C Japanese Capacitor
    • 7 years warranty

    SPECIFICATIONS

    CORE-GM-650

    Technical Specifications
    80PLUS® Gold
    Cybenetics Efficiency Level TBA
    Cybenetics Noise Level TBA
    Form Factor Intel ATX 12 V
    Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size 120 mm
    Fan Control Smart and Silent Fan Control
    Fan Bearing Sleeve Bearing
    Life Expectancy 25,000 hours at 40 °C, 15 % - 65 % RH
    Cable Information Modularity Semi-modular
    Cable type Flat black cables
    Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
    MTBF @ 25 °C, excl. fan 100,000 hours
    AC Input Full Range
    Protection OPP, OVP, OCP, OTP, SCP, UVP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, CE, FCC
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 7 Years
    Power Output
    AC Input Voltage: 100 V - 240 V
    Current: 9 - 4.5 A
    Frequency: 50 Hz - 60 Hz
    DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
    Maximum Power 20 A 20 A 54 A 0.3 A 3 A
    100 W 648 W 3.6 W 15 W
    Total continuous power 650 W

    CABLES

    CORE-GM-650

    Cable type Connector(s) per cable Total length (mm) Number(s) of cable(s) included
    MB-610 MB (24/20 pins) 1 610 1
    CPU-650 CPU (8/4 pins) 1 650 1
    PCIe-750-2x PCIe (8/6 pins) 2 750 2
    PCIe-750-1x PCIe (8/6 pins) 1 750 0
    SATA-810-4x-90 SATA 4 810 1
    SATA-800-4x-180 SATA 4 860 0
    SATA-760-4x-90 SATA 4 760  0
    SATA-700-2x-90 SATA 2 700 0
    SATA-570-2x-180 SATA 2 570 0
    SATA-470-2x-180 SATA 2 470 0
    SATA-450-2x-180 SATA 2 450 1
    Molex-690-3x Molex 3 690 1
    Molex-470-2x Molex 2 470 0
    Molex-to-SATA-3-3-300 Molex to SATA 3.3 Adapter 2 300 0
    Molex-to-FDD-101 Molex to FDD Adapter 1 101  0
