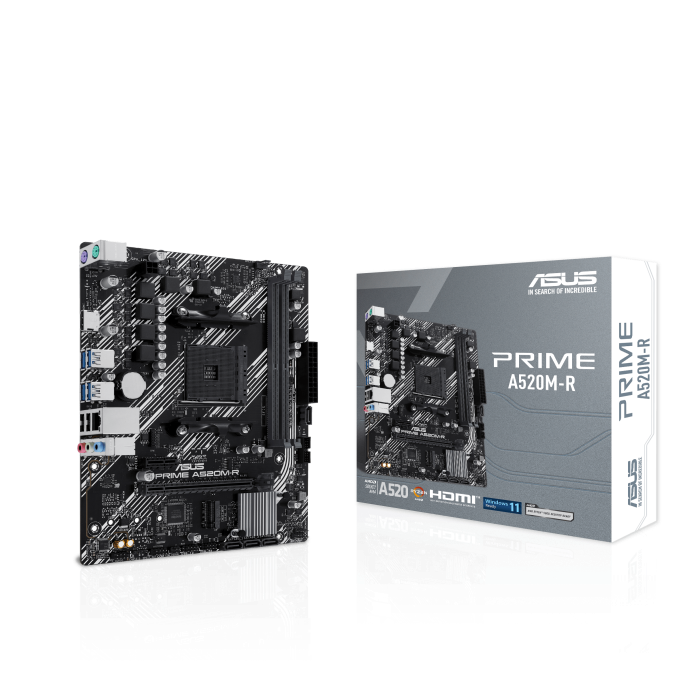

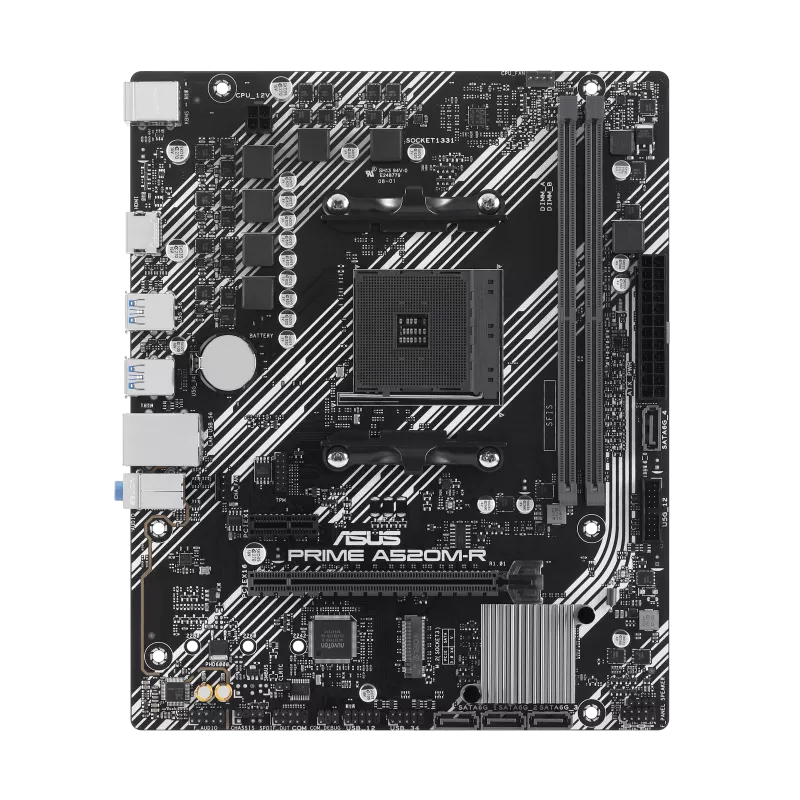

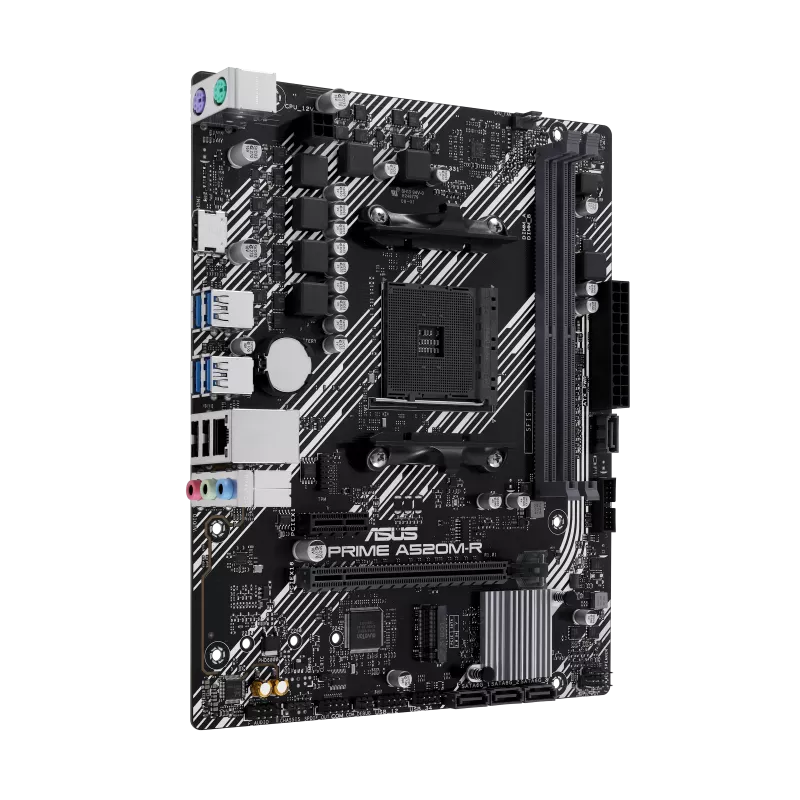

ASUS Prime A520M-R AM4 Micro ATX Motherboard
بضمان الوكيل المحلي
3,200.00 EGP
|
The ASUS Prime A520M-R delivers reliable performance for budget-conscious builders seeking a stable AM4 platform. This micro ATX motherboard supports Ryzen 3000 and 5000 series processors with essential features including PCIe 3.0 support, dual M.2 slots for NVMe storage, and robust power delivery. The compact form factor fits standard cases while maintaining quality VRM design for stable overclocking. With multiple USB headers, SATA connectivity, and straightforward BIOS navigation, it provides the foundation for a dependable workstation or gaming build without unnecessary complexity or premium pricing. Specifications |
|
|---|---|
| CPU | AMD AM4 — Ryzen 5000 / 5000G / 4000G / 3000 / 3000G Series |
| Chipset | AMD A520 |
| Memory | 2× DIMM, up to 64GB DDR4 5100MHz OC down to 2133MHz Dual-Channel, ECC (depends on CPU) |
| Graphics | 1× HDMI (4K@60Hz, HDMI 2.1) |
| Expansion Slots | 1× PCIe 3.0 x16 (CPU) 1× PCIe 3.0 x1 (Chipset) |
| Storage | 1× M.2 (PCIe 3.0 x4 & SATA) 4× SATA 6Gb/s Supports RAID 0/1/10 |
| Ethernet | Realtek 1Gb LAN |
| USB (Rear) | 4× USB 5Gbps Type-A 2× USB 2.0 Type-A |
| USB (Front) | 1× USB 5Gbps (2 ports) 2× USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 HD Audio, 24-bit/192kHz Audio shielding, premium capacitors |

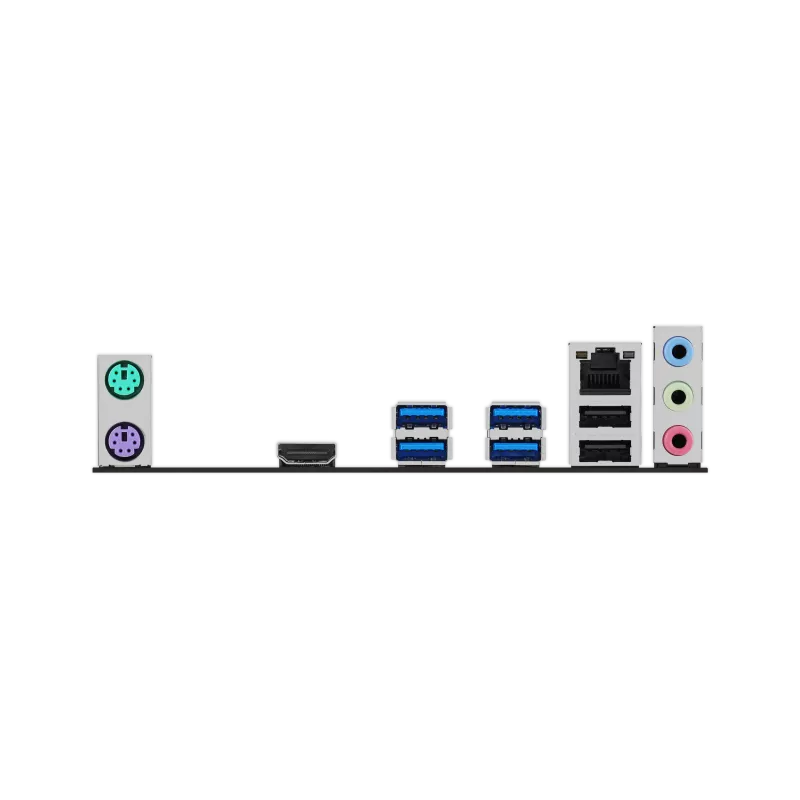

| Back Panel I/O | 4× USB 5Gbps 2× USB 2.0 HDMI 1× RJ-45 LAN 3× Audio jacks PS/2 Keyboard + PS/2 Mouse |
| Internal I/O | 1× CPU Fan | 1× Chassis Fan 24-pin ATX | 4-pin 12V 1× M.2 | 4× SATA USB 5Gbps header | 2× USB 2.0 headers COM header | Front Audio | S/PDIF Out TPM header | System panel Clear CMOS | Speaker header |
| Special Features | ASUS 5X Protection III Q-DIMM, Q-LED Core, Q-Slot Aluminum Heatsink |
| Software | Armoury Crate, AI Suite 3 TurboV EVO, Fan Xpert ASUS CPU-Z, Norton trial, WinRAR trial |
| BIOS | 128 Mb AMI UEFI BIOS, EZ Flash 3, CrashFree BIOS 3 |
| OS Support | Windows 11 / 10 (64-bit) |
| Form Factor | Micro-ATX — 23.6 × 19.3 cm |
