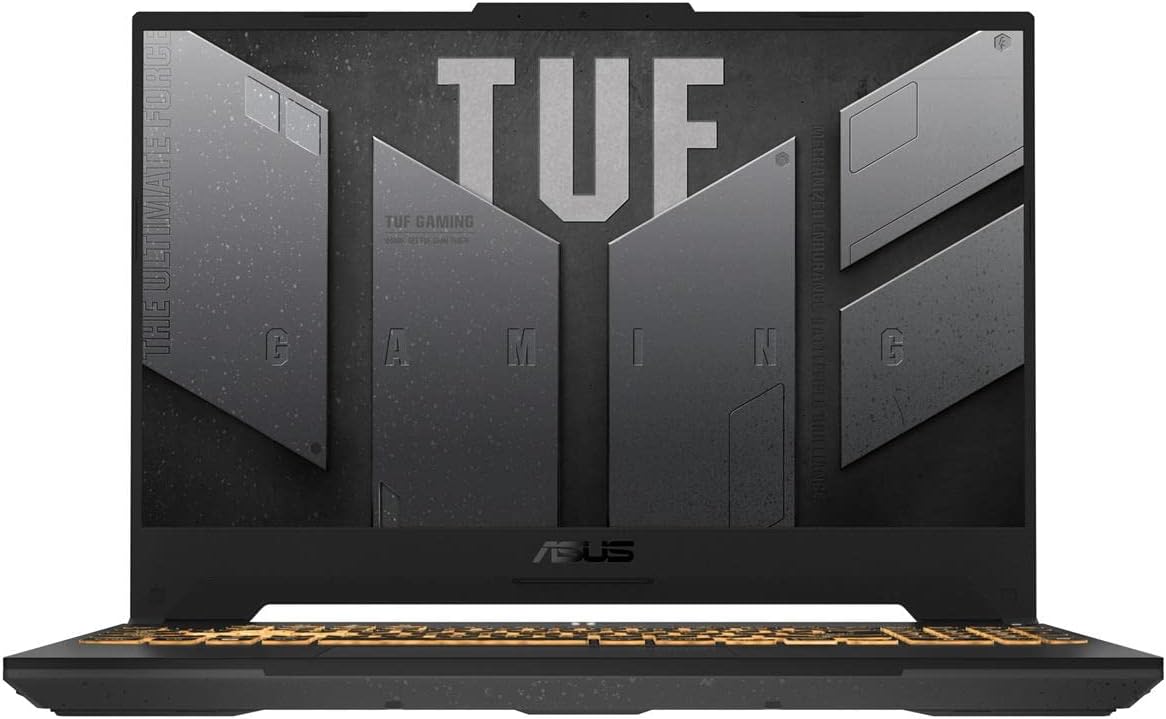

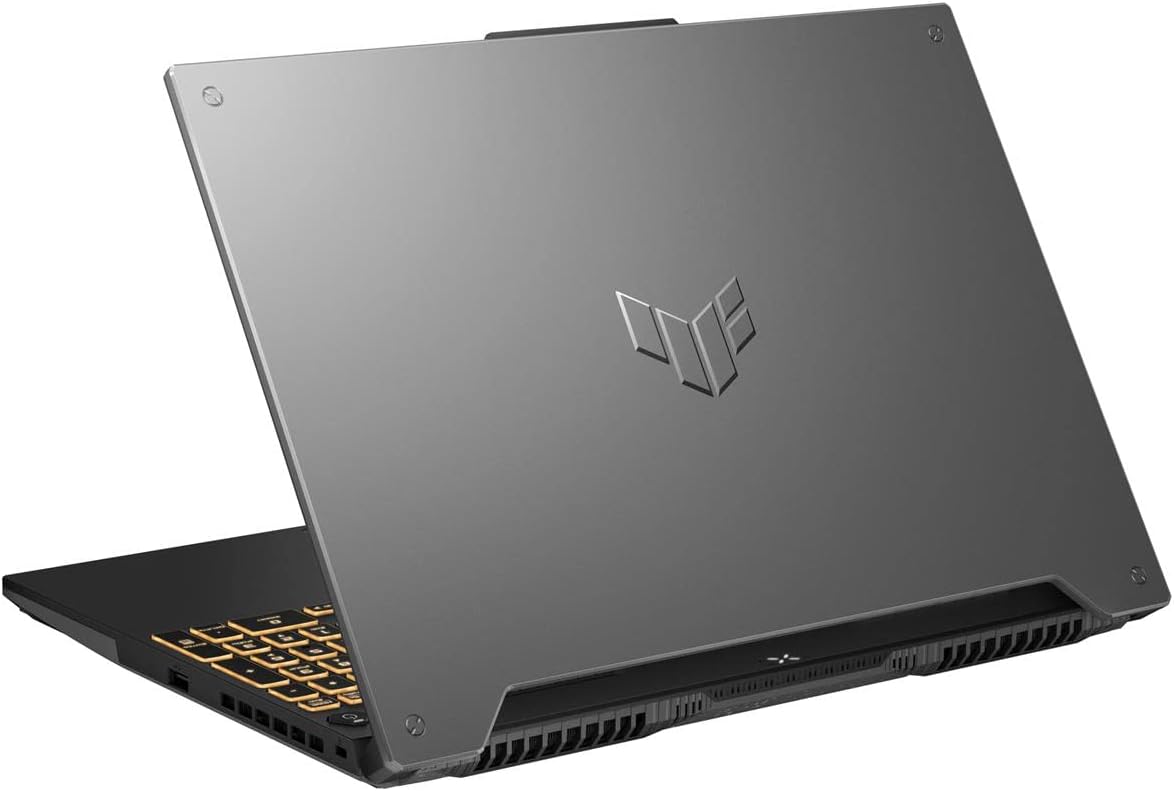

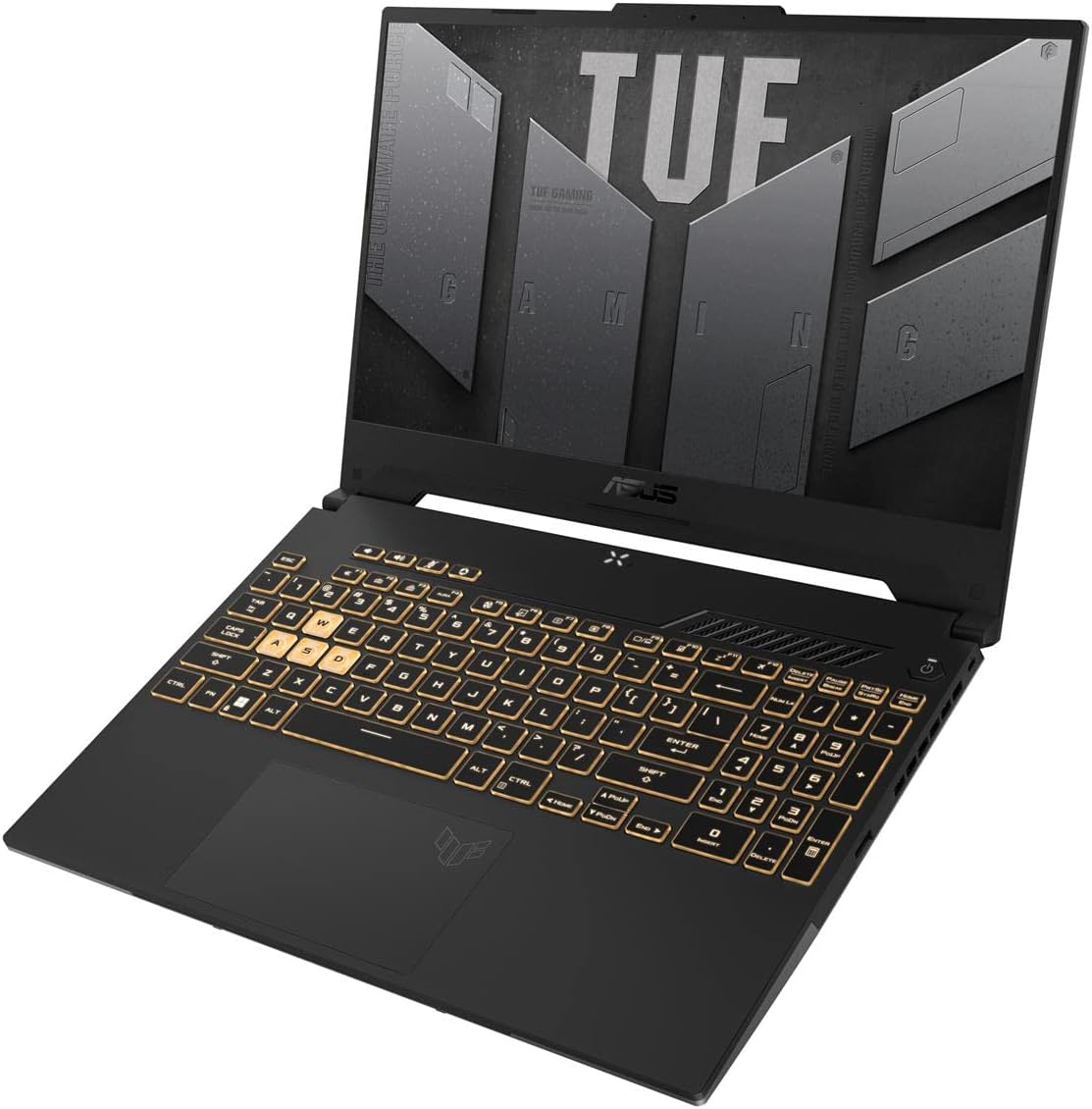

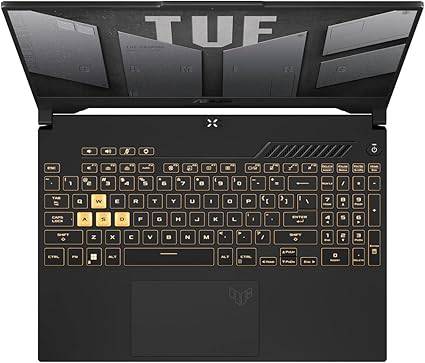

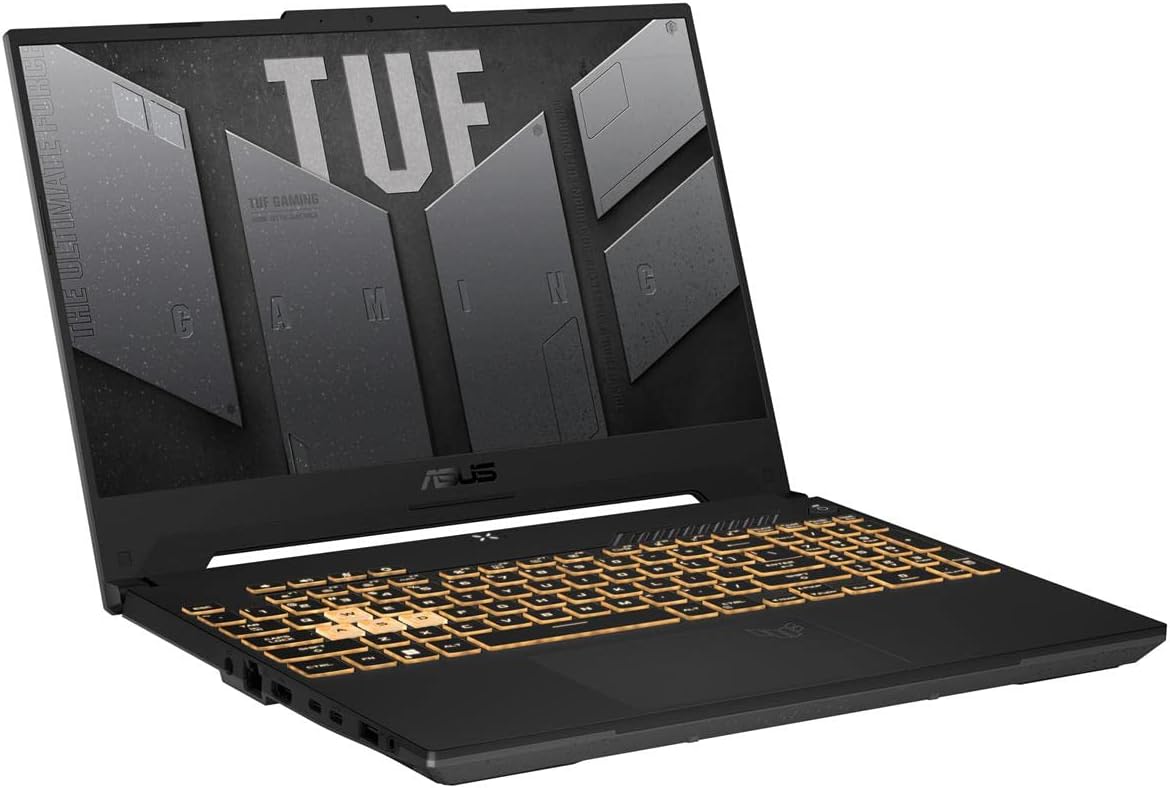

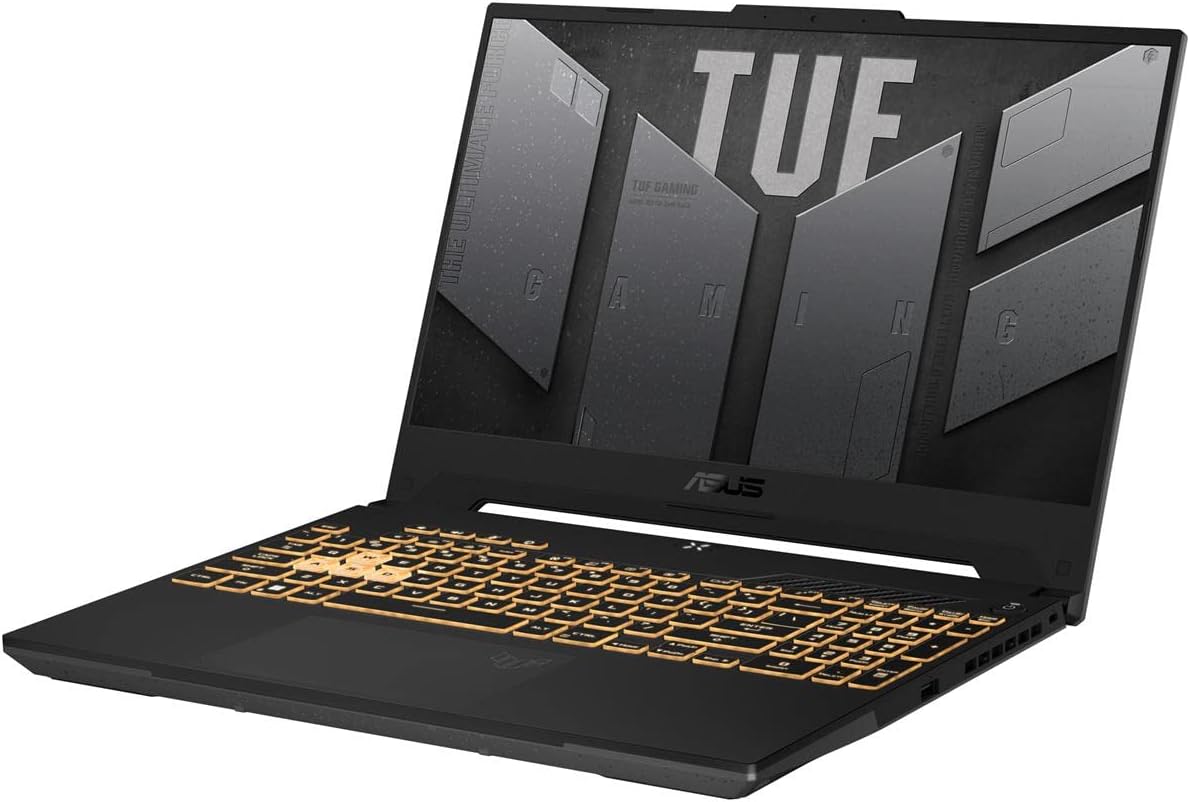

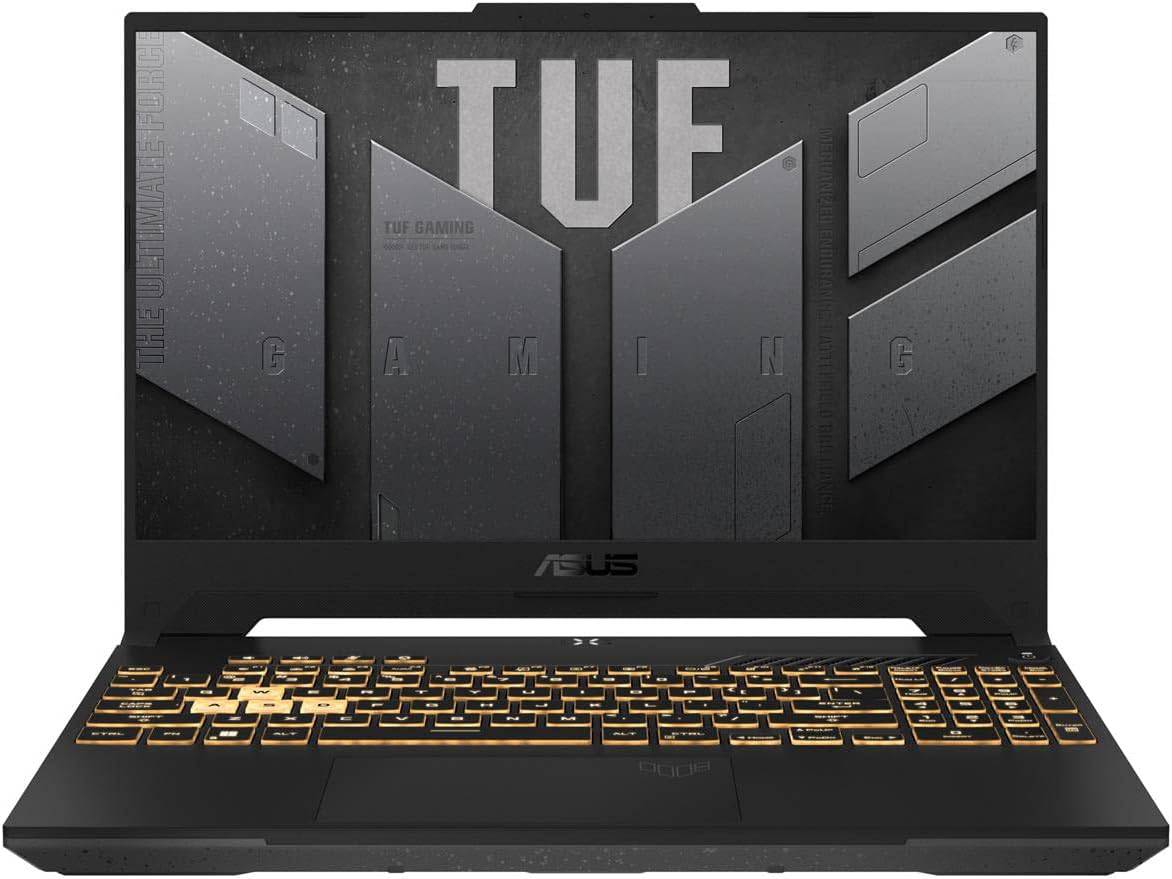

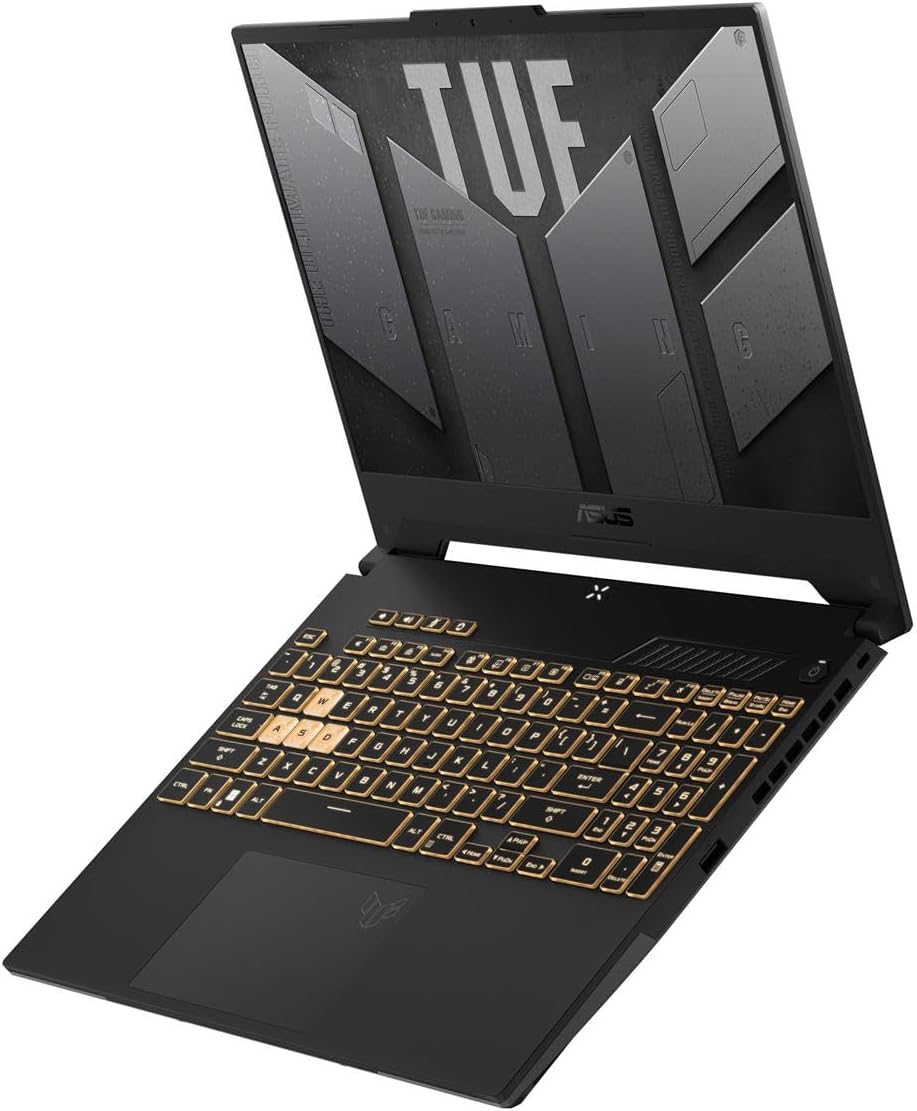

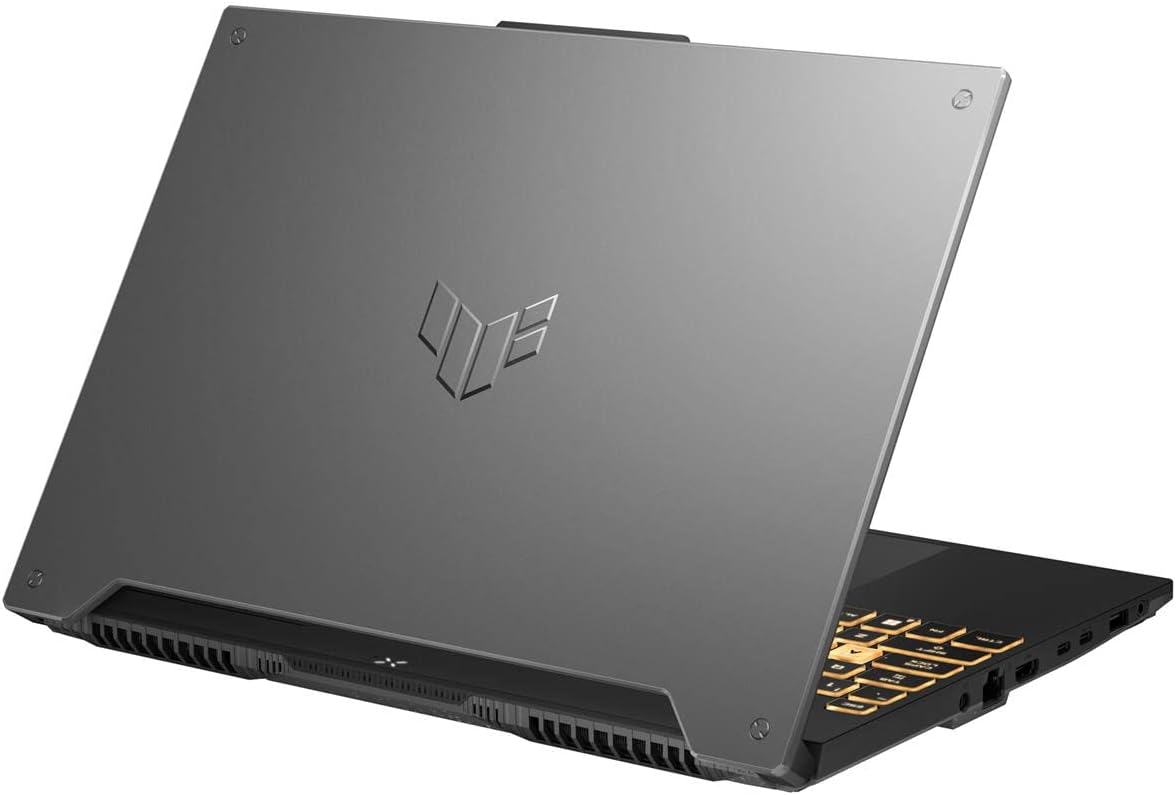

Asus TUF Gaming F15 FX507 CORE i7-12700H - RTX 3050 4GB -16GB RAM DDR4 - SSD 512GB - 15.6" WV 144Hz - WIN 11

Part No

90NR0GW1-M007L0

Model Name

FX507ZC4-HN081W

EAN Code

4711387028018

UPC Code

197105028012

WEEE

2.342

BASE UNIT

VSNR0GW1-BU2000

Marketing Name

ASUS TUF Gaming F15

Color

Mecha Gray

Dimension (W x D x H)

35.4 x 25.1 x 2.24 ~ 2.49 cm (13.94" x 9.88" x 0.88" ~ 0.98")

Weight

2.20 Kg (4.85 lbs)

Processor

12th Gen Intel Core i5-12500H Processor 2.5 GHz (18M Cache, up to 4.5 GHz, 12 cores: 4 P-cores and 8 E-cores)

Chipset

N/A

Discrete/Optimus

MUX Switch + Optimus

Graphic

NVIDIA GeForce RTX 3050 Laptop GPU

Graphic Wattage

1790MHz* at 95W (1740MHz Boost Clock+50MHz OC, 80W+15W Dynamic Boost)

Graphic Memory

4GB GDDR6

Intergrated GPU

Intel Iris Xᵉ Graphics

Panel Size

15.6-inch

Resolution

FHD (1920 x 1080) 16:9

Refresh Rate

144Hz

Viewing Angle

170

Panel Tech

Value IPS-level

Brightness

250nits

Contrast

1000:1

NTSC %

45%

SRGB %

62.50%

Adobe %

47.34%

Anti glare

Anti-glare display

Adaptive-Sync technology

Adaptive-Sync

Pantone

N/A

Support Dolby Vision HDR

N/A

On board memory

N/A

DIMM Memory

8GB DDR4-3200 SO-DIMM

Total System Memory

DDR4 8GB

Memory Slot

2x SO-DIMM slots

Memory Max.

32GB

Multi-channel memory technology

Support dual channel memory

System Storage Installed

512GB PCIe 3.0 NVMe M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

M.2 PCIe 512GB

M.2 PCIe 1TB

Expansion Slot (includes used)

2x DDR4 SO-DIMM slots

LAN

10/100/1000 Mbps

Wi-Fi/Bluetooth

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.2 Wireless Card (*Bluetooth version may change with OS version different.)

I/O Ports

1x RJ45 LAN port

1x Thunderbolt 4 support DisplayPort

1x USB 3.2 Gen 2 Type-C support DisplayPort / G-SYNC

2x USB 3.2 Gen 1 Type-A

Display output

1x HDMI 2.0b

Audio

1x 3.5mm Combo Audio Jack

Camera

720P HD camera

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard 1-Zone RGB

NumberPad

N/A

Aura Sync

Yes

Speakers

2-speaker system

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification (for headphone)

Operating System

Windows 11 Home

Office

1-month trial for new Microsoft 365 customers. Credit card required.

Antivirus

McAfee® 30 days free trial

Xbox Game Pass

Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Security

BIOS Administrator Password and User Password Protection

Kensington Security Slot

Trusted Platform Module (Firmware TPM)

Battery

56WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

ø6.0, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal
