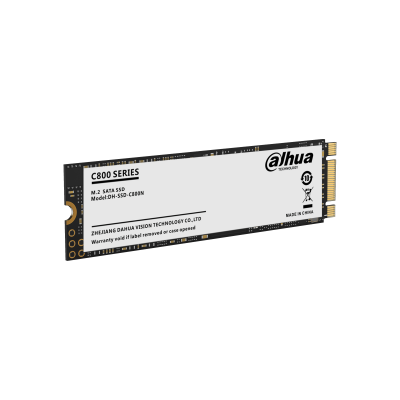

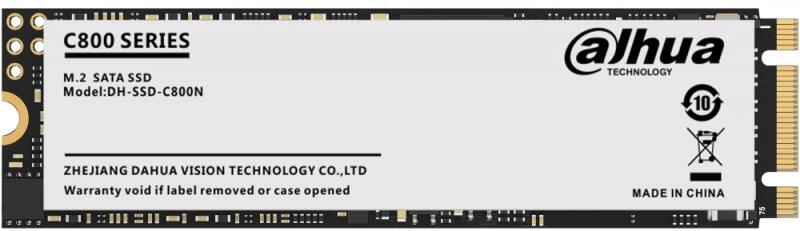

dahua sata m.2 C800N 256gb

Technical Specification

Product Model

DHI-SSD-C800N128G

DHI-SSD-C800N256G

DHI-SSD-C800N500G

DHI-SSD-C800N512G

DHI-SSD-C800N1TB

Capacity1

128GB

256 GB

500 GB

512 GB

1 TB

Form Factor

SATA M.2 2280

Port

SATA III 6Gb/s

Net Weight

Max. 8 g (0.02 lb)

Product Dimensions2

80.00 mm × 22.00 mm × 2.20 mm (3.15" × 0.87" × 0.09")

Packaging Dimensions

140.50 mm × 105.50 mm × 15.50 mm (5.53" × 4.15" × 0.61")

Memory Component

3D NAND

Power Consumption3

0.88W (max.)
0.26W(idle)

1.60W (max.)
0.48W(idle)

1.65W (max.)
0.74W(idle)

1.65W (max.)
0.74W(idle)

1.70W (max.)
0.87W (idle)

S.M.A.R.T

Yes

TRIM

Yes

Garbage Collection

Yes

Sequential Read3

Up to 500 MB/s

Up to 530 MB/s

Up to 530 MB/s

Up to 530 MB/s

Up to 530 MB/s

Sequential Write3

Up to 450 MB/s

Up to 450 MB/s

Up to 510 MB/s

Up to 450 MB/s

Up to 500 MB/s

4K Random Read3

Up to 56000

Up to 54000

Up to 39000

Up to 39000

Up to 70000

4K Random Write3

Up to 77000

Up to 79000

Up to 86000

Up to 79000

Up to 79000

MTBF

1,500,000 hours

Operating Temperature

0°C to +70°C (+32°F to +158°F)

Storage Temperature

-40°C to +85°C (-40°F to +185°F)

Operating Humidity

5%–95% (non-condensing)

Vibration Resistance

10–200Hz, 0.5G

TBW

250 TB

100 TB

200 TB

200 TB

400 TB
