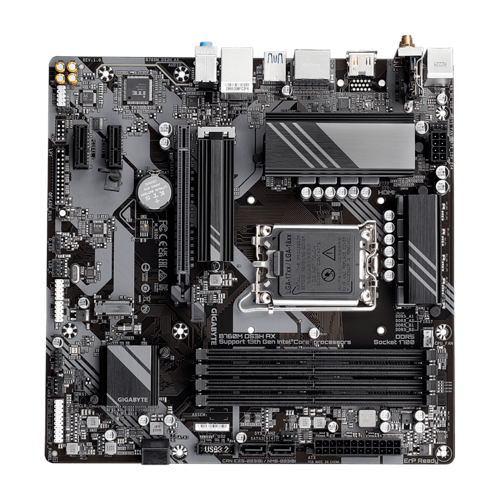

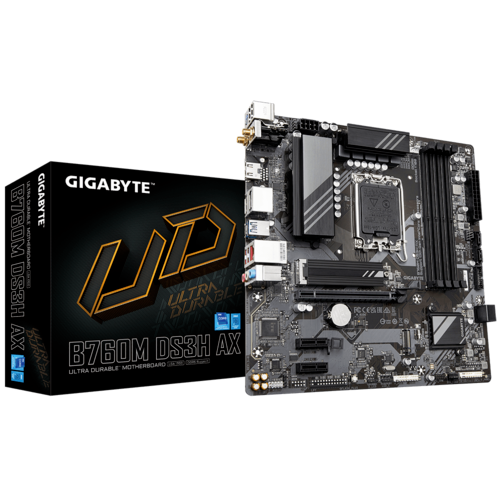

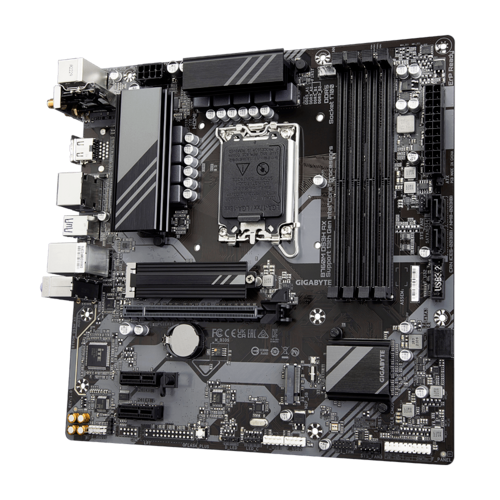

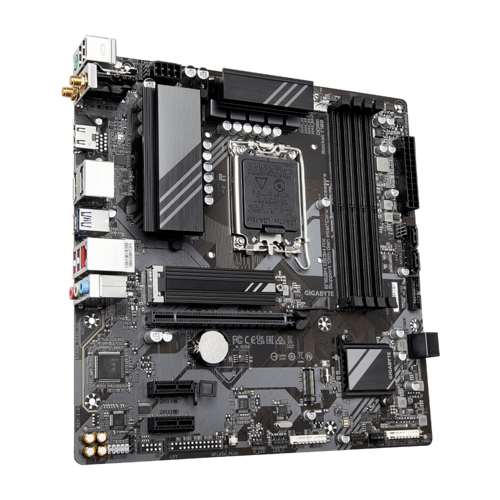

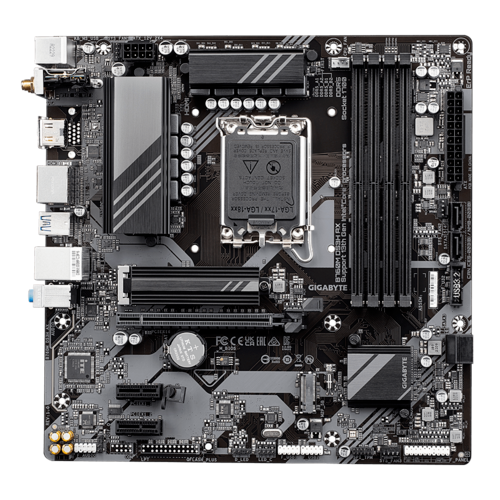

GIGABYTE B760M DS3H AX DDR5 Motherboard Supports Intel Core 12th-13th-14th Gen CPUs With 2xPCIe 4.0 M.2 Slots and DDR5 Memory
بضمان الوكيل المحلي لمدة 3 سنوات
Sale price
0.00 EGP
Regular price
6,700.00 EGP
The GIGABYTE B760M DS3H AX DDR5 motherboard is engineered for advanced performance, supporting Intel Core 12th, 13th, and 14th generation processors. It features dual PCIe 4.0 M.2 slots for high-speed NVMe storage and DDR5 memory compatibility, ensuring faster data transfer and improved system responsiveness. This motherboard offers a solid foundation for building a powerful, future-proof PC with enhanced connectivity and memory capabilities tailored for demanding computing tasks.
| Specification | Details |
|---|---|
| CPU Support | 14th/13th/12th Gen Intel® Core™, Pentium® Gold, Celeron® (LGA1700) |
| Chipset | Intel® B760 Express |
| Memory | 4 x DDR5 DIMM, up to 256 GB, dual channel, ECC/non-ECC unbuffered, XMP support |
| Graphics | 1x D-Sub, 1x HDMI 2.1, 2x DisplayPort 1.2 (max quad-display) |
| Audio | Realtek® Audio CODEC, 7.1-channel, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN |
| Expansion Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| Storage | 2 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s, RAID 0/1/5/10 |
| USB | 1 x USB-C 3.2 Gen 2, 5 x USB 3.2 Gen 1, 6 x USB 2.0 |
| Internal I/O | 24-pin & 8-pin power, 3 x sys fan, CPU fan, ARGB/RGB headers, TPM, USB headers, etc. |
| Back Panel | USB-C, USB 3.2, USB 2.0, PS/2, D-Sub, HDMI, 2x DP, LAN, 3x audio jacks |
| Monitoring | Voltage, Temp, Fan speed/control, Water flow rate |
| BIOS | 128 Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus |
| Software | GIGABYTE Control Center, Norton® Internet Security, LAN mgmt software |
| OS Support | Windows 10/11 64-bit |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
