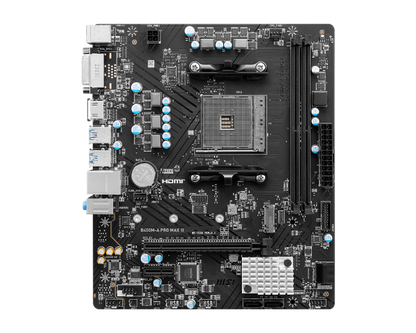

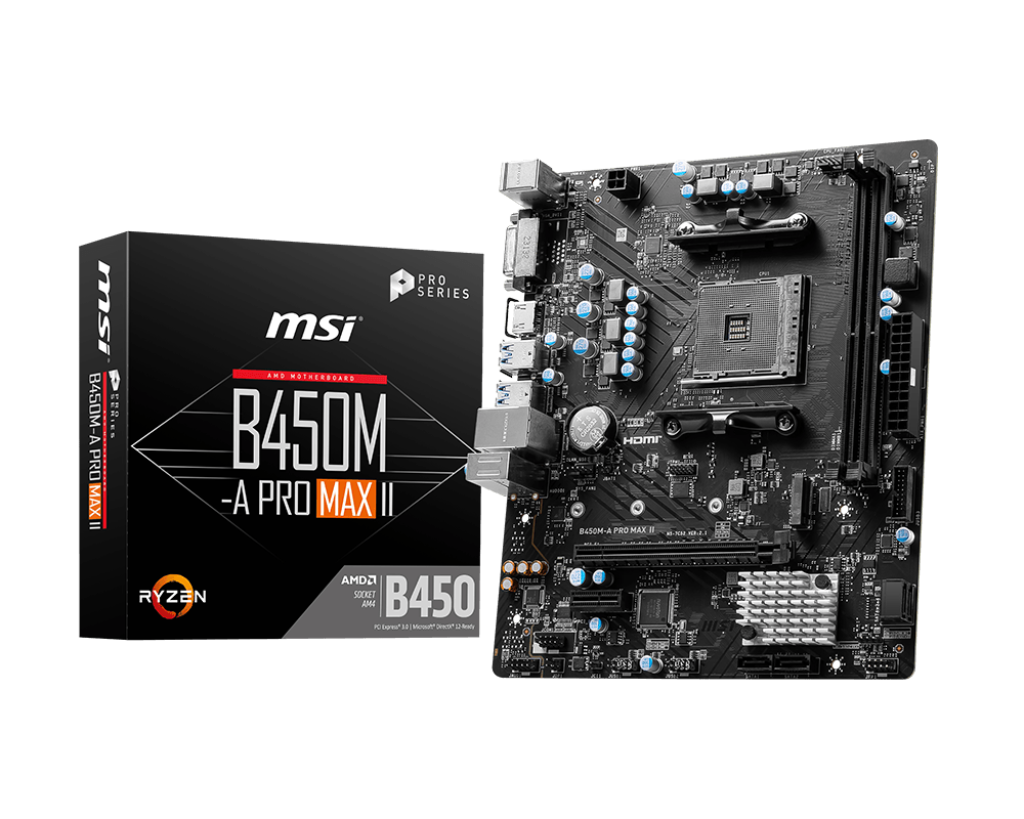

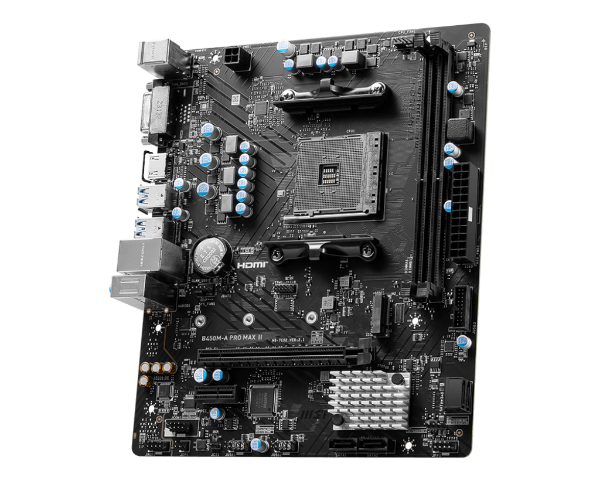

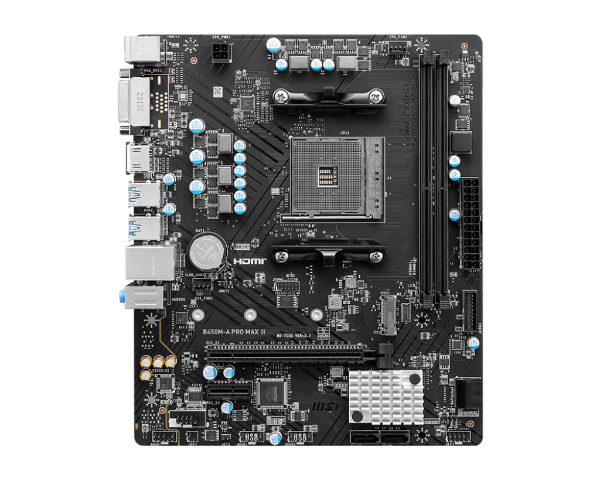

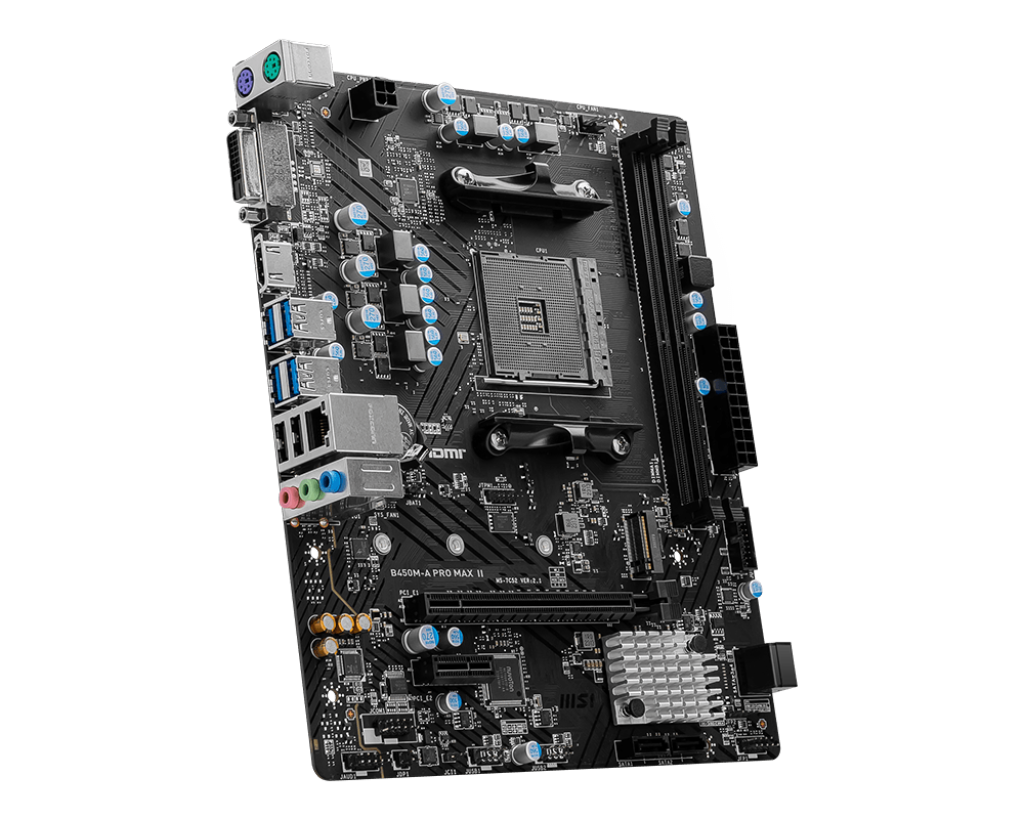

MSI B450M-A PRO MAX II AMD AM4 Motherboard

MSI B450M-A PRO MAX II AMD AM4 Motherboard Engineered for performance and reliability, the MSI B450M-A PRO MAX II delivers robust support for AMD Ryzen processors on the AM4 socket. This micro-ATX motherboard combines essential features with refined stability, making it an excellent foundation for mid-range gaming and productivity builds. With comprehensive power delivery, enhanced thermal management, and intuitive BIOS controls, it provides the dependability required for sustained operation. The compact form factor accommodates modern cases without compromising connectivity or upgrade potential, while proven MSI engineering ensures longevity and consistent performance across demanding workloads.

SPECS:

CHIPSET	MSI B450M-A PRO MAX II
CPU	Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors Socket AM4
MEMORY	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
ONBOARD GRAPHICS	1x HDMI™ Support HDMITM 2.0b, maximum resolution of 4K 60Hz* 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
STORAGE	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN	Realtek® 8125 2.5Gbps LAN controller
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
INTERNAL IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports

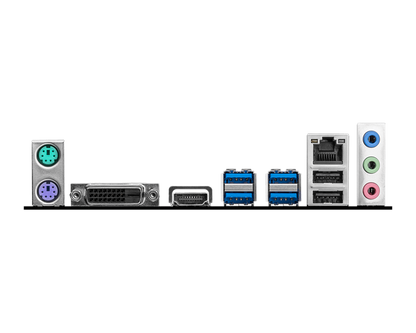

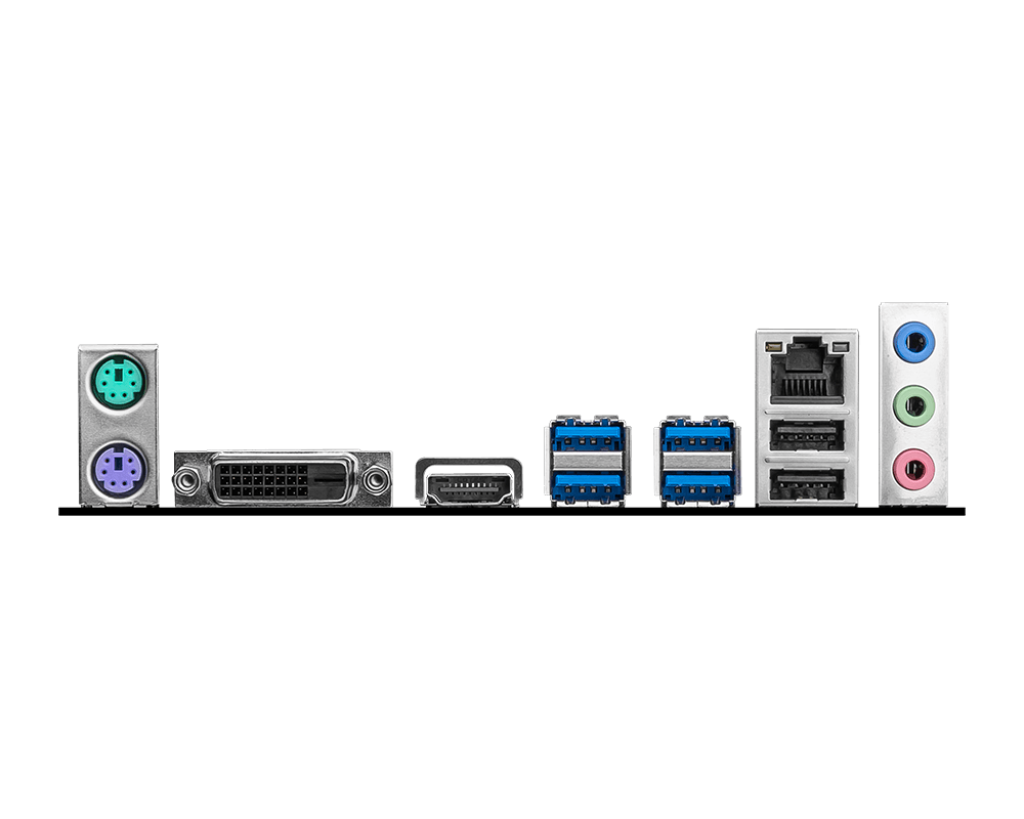

BACK PANEL PORTS	Keyboard/Mouse DVI-D HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Audio connectors USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
