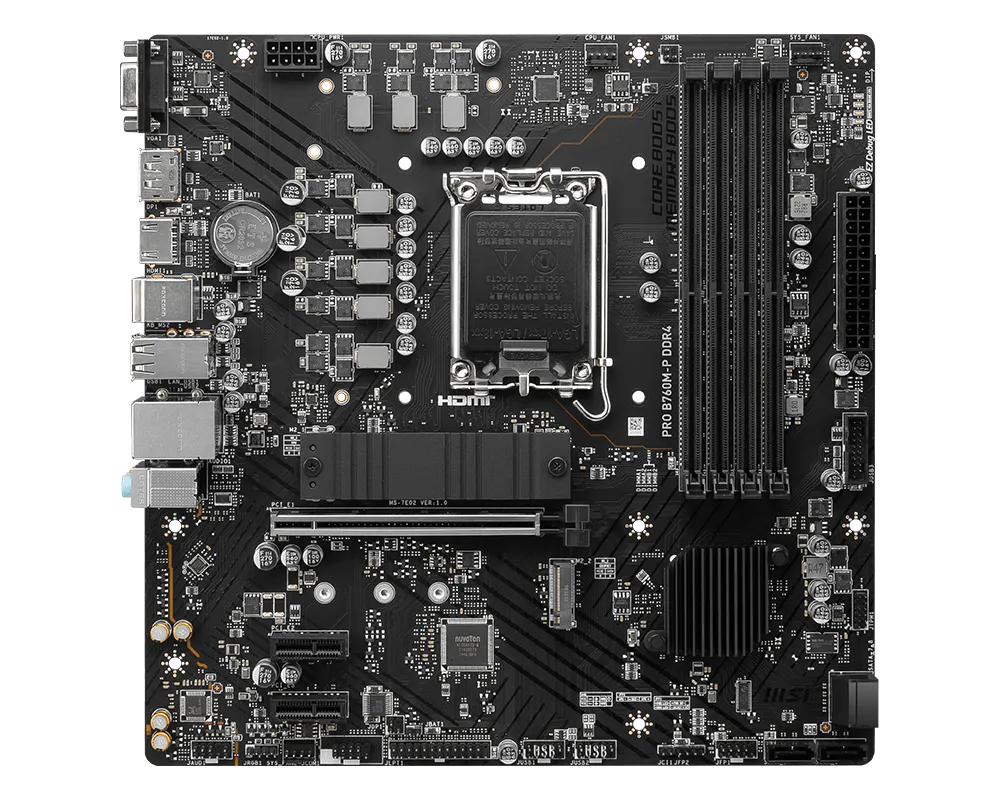

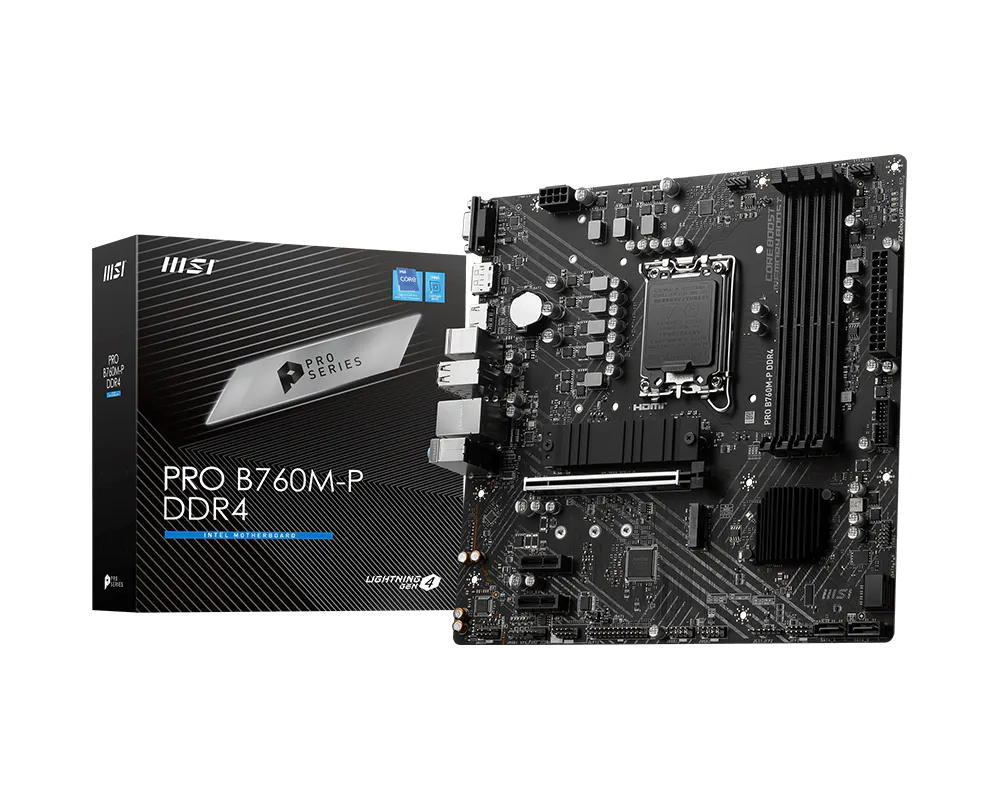

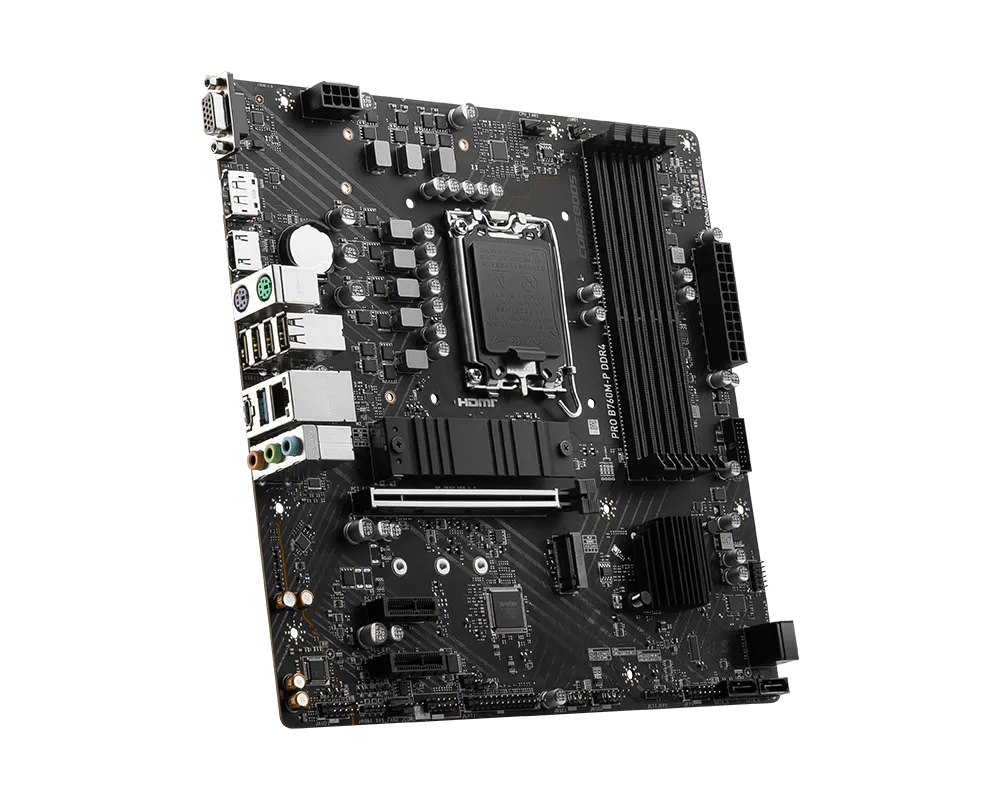

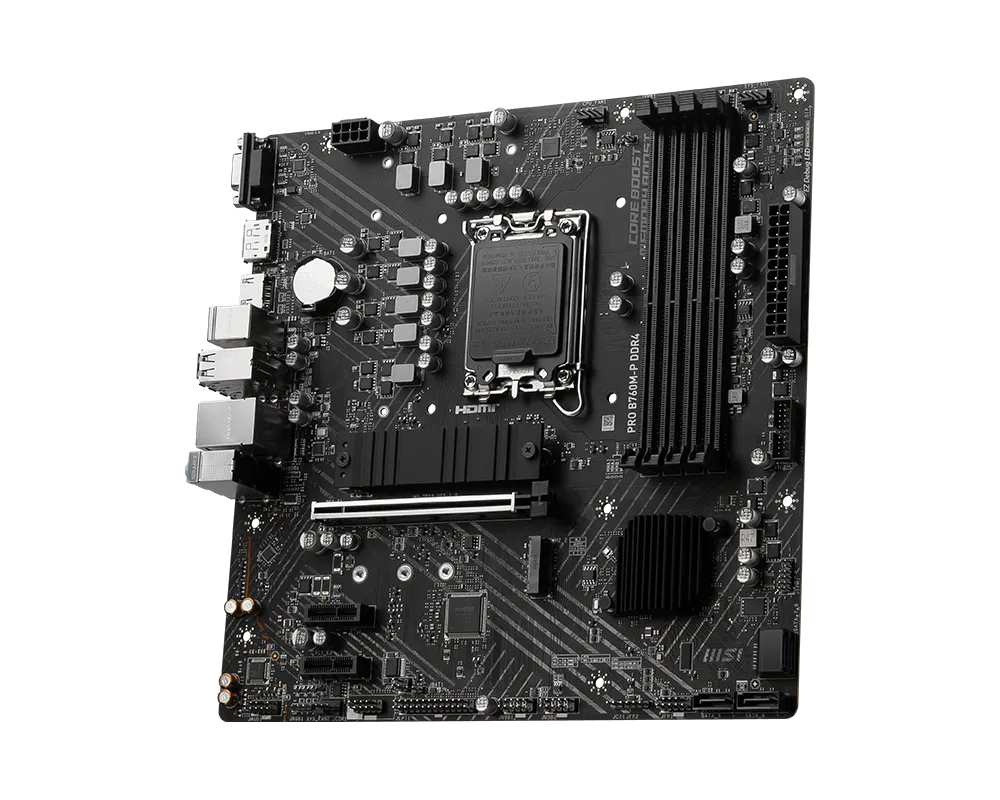

MSI PRO B760M-P DDR4 Intel LGA 1700 Motherboard
6,000.00 EGP
Skip to product information
20000+ HAPPY CUSTOMERS
MSI PRO B760M-P DDR4 Intel LGA 1700 Motherboard
بضمان الوكيل المحلي لمدة 3 سنوات
6,000.00 EGP
The MSI PRO B760M-P DDR4 motherboard is a reliable and practical choice for users seeking powerful performance at an affordable price. It supports 12th and 13th generation Intel processors via the LGA 1700 socket, with full support for fast DDR4 memory. Its compact (Micro-ATX) form factor makes it suitable for small and medium-sized PCs, making it an ideal choice for building well-balanced systems. The board offers high stability and reliable features from MSI, including an optimized power system and efficient cooling. It's suitable for office workers, professionals, and everyday users who want a reliable motherboard without unnecessary extra costs.
| Chipset | Intel B760 |
| CPU | Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® – LGA 1700 |
| Memory | 4x DDR4 up to 128GB |
| Memory Speed | 4800+(OC) / 4600 / 4400 / 4266 / 4200 / 4000 / 3800 / 3733 / 3600 / 3466 / 3400 / 3333 / 3200 / 2933 / 2666 / 2400 / 2133 MHz |
| Memory Features | Dual-Channel, XMP, Non-ECC, Un-buffered |
| Onboard Graphics | HDMI 1.4 (4K@30Hz), DisplayPort 1.4 (4K@60Hz), VGA |
| PCI-E x16 | 1x PCIe 4.0 x16 (From CPU) |
| PCI-E x1 | 2x PCIe 4.0 x1 (From Chipset) |
| Audio | Realtek® ALC897 7.1-Channel HD Audio |
| M.2 Slots | 2x M.2 (PCIe 4.0 x4 / SATA) |
| SATA | 4x SATA 6Gb/s |
| RAID | 0 / 1 / 5 / 10 |

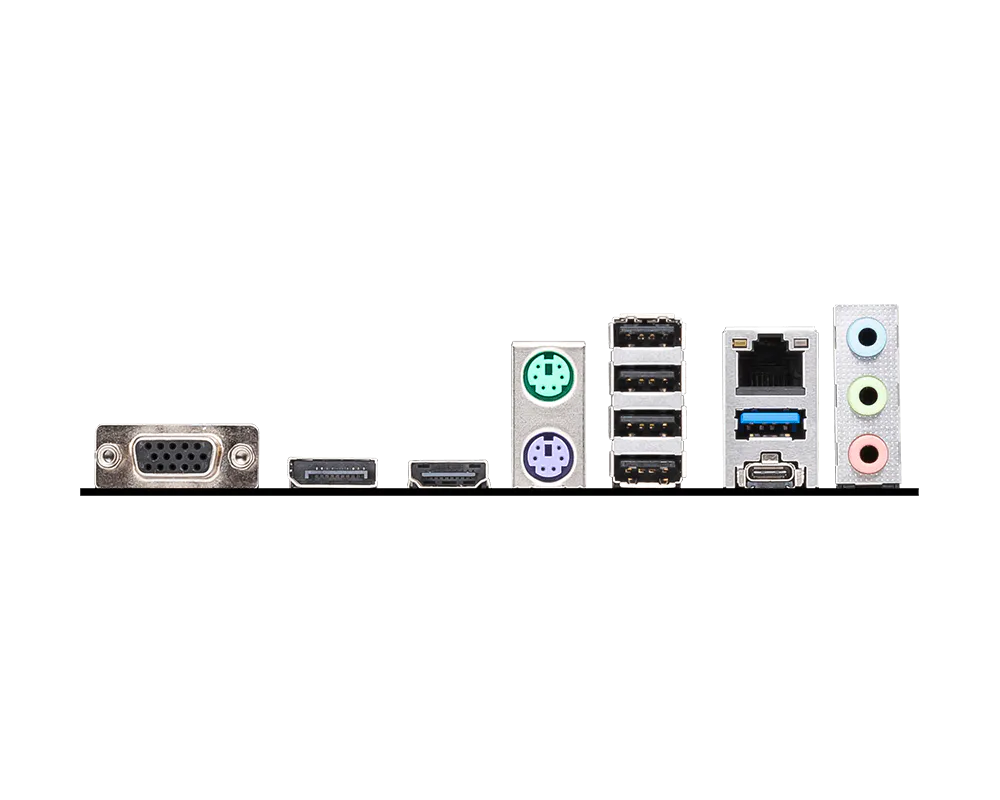

| USB (Rear) | 4x USB 2.0, 1x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| USB (Front) | 4x USB 2.0, 2x USB 5Gbps Type-A |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal I/O | ATX Power, CPU Power, Fans, RGB, TPM 2.0, COM, LPT, Front Audio |
| Debug | 4x EZ Debug LED |
