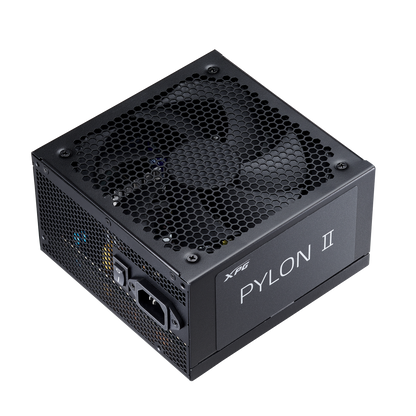

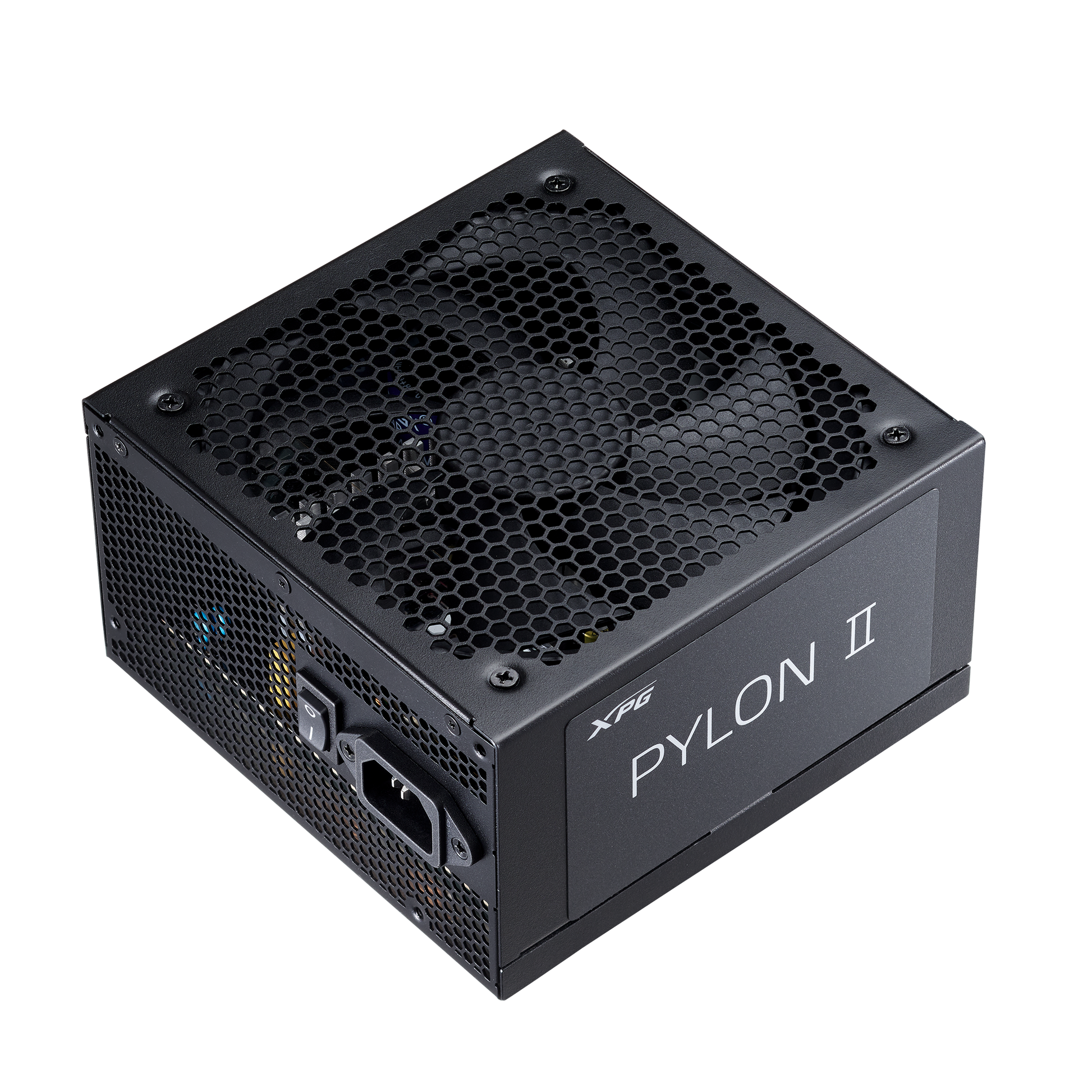

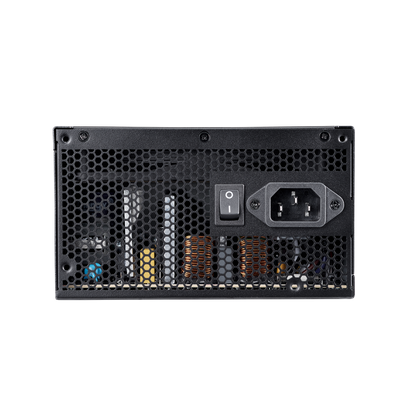

XPG PYLON II 650W 80+ BRONZE ATX 3.1 POWER SUPPLY
بضمان الوكيل المحلي لمدة سنة
Sale price
0.00 EGP
Regular price
5,800.00 EGP
The XPG PYLON II 650W 80+ Bronze ATX 3.1 Power Supply offers efficient and stable power delivery with 80 Plus Bronze certification, ensuring up to 85% energy efficiency. Designed to meet ATX 3.1 standards, it supports modern hardware requirements with improved power stability and connectivity. Its robust build includes high-quality components and advanced protections against overvoltage, undervoltage, and short circuits, ensuring system reliability and longevity. Silent cooling keeps noise levels low, making it a reliable choice for gaming rigs and professional desktops alike.
| Dimensions (L x W x H) | 150 x 150 x 86mm |
| 80 Plus Rating | BRONZE |
| ATX Version | Intel ATX v3.1 |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP |
| PFC | 0.99 |
| Input Voltage | 100-240V |
| Input Current | 650W |
| Input Frequency | 50-60Hz |
| DC Output Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Total Output |
650W: +5V/+3.3V :20A, +12V:54A, -12V:0.3A, +5Vsb:3A |
| Power Excursion |
650W: 1527W (up to 235% of PSU’s rated power for 100µs) |
| Operating Temperature | 50°C |

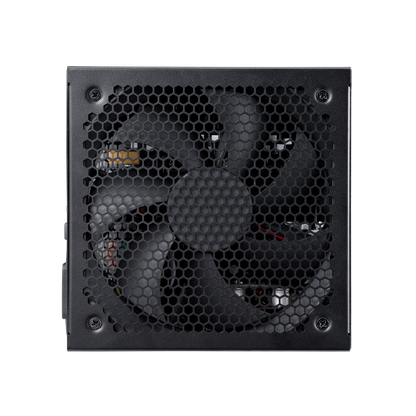

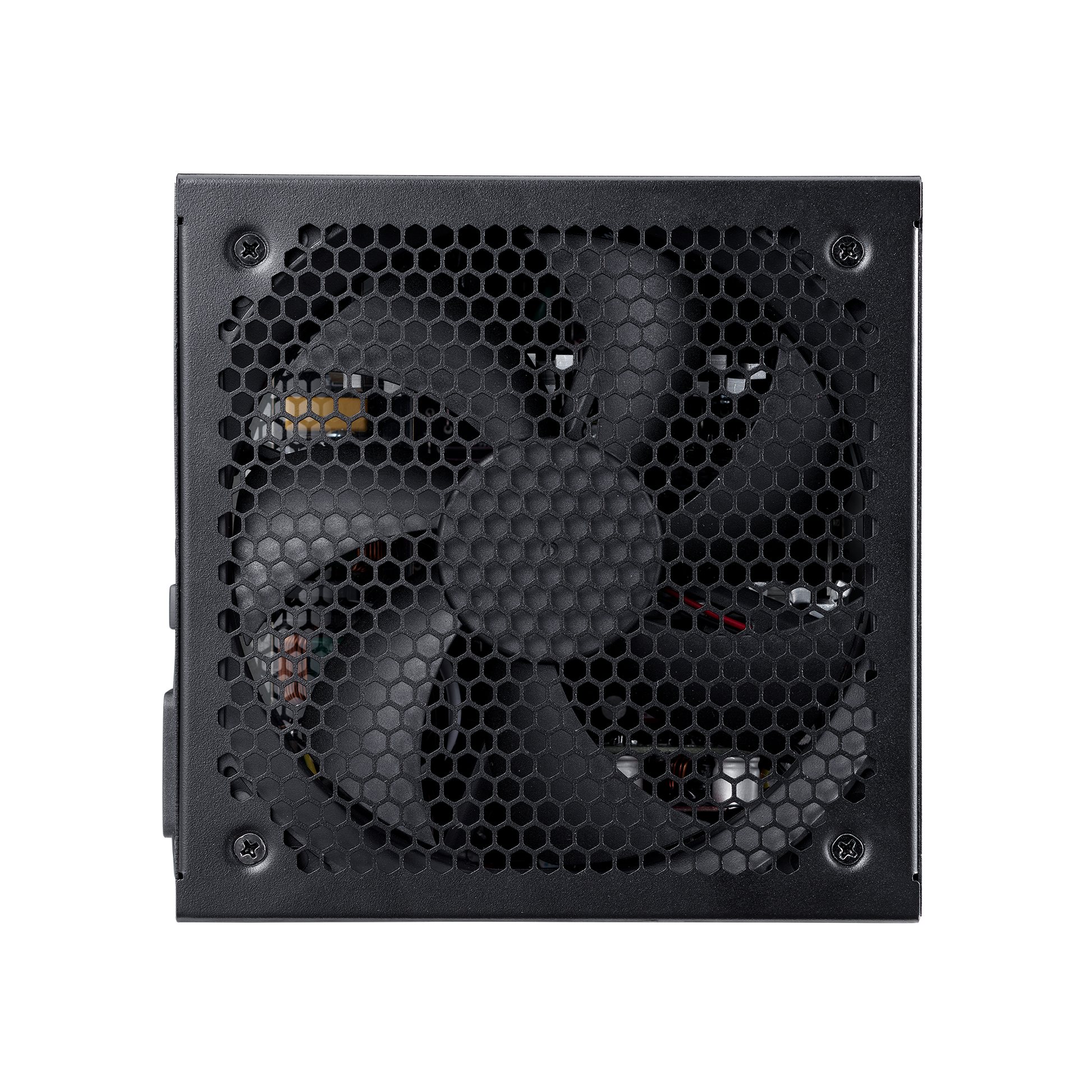

| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Fan Speed | 2300±10 RPM |
| MTBF | 100K Hours at 25℃ |
| ATX 24 Pin Connector | 1 |
| EPS 8 Pin Connector | 2 |
| Molex 4 Pin Connector | 2 |
| 12V-2x6 (12+4) Connector (450W) | 650W |
| 12V-2x6 Connector (300W) | 1 |
| SATA Connector | 6 |
| Weight | 1.8 kg |
